Our engineers completed liquid nitrogen pipe isolation on Level 3 of a commercial office building on Queen Victoria Street in the City of London, enabling new valve installation with minimal disruption.
Project at a Glance
Project: FCU pipework isolation for valve installation

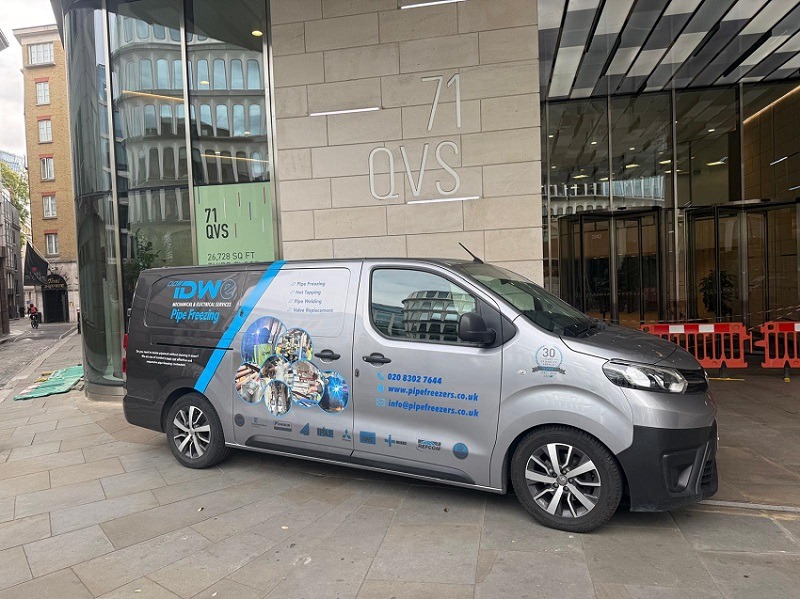

Location: 71 Queen Victoria Street, London, EC4
Client: D & D Technical Construction Ltd
Service: Liquid nitrogen pipe freezing
Sector: Commercial Offices
Works included: Two pipe freezes on LTHW and chilled water FCU pipework on Level 3, supporting valve installation by others.
Commercial Pipe Isolation Case Study – Queen Victoria Street
Why did the Client Need Specialist Pipe Isolation?
D & D Technical Construction Ltd required specialist pipe isolation at 71 Queen Victoria Street in the City of London. The project involved fan coil unit (FCU) pipework located on the third floor of the commercial office building. New valves needed installation on the LTHW and chilled water flow and return steel pipework.
Our experienced engineers used our specialist pipe freezing services to create two controlled freezes using liquid nitrogen. The temporary isolation allowed the planned valve works to progress without relying on an existing local valve for isolation.
Once the ice plugs had formed, others completed the valve installation. Our team then managed the thawing process, checked the pipework and reinstated the areas disturbed by our works.
What Preparation was Needed Before the Pipe Freeze?
Successful pipework freezing requires careful preparation and controlled conditions. Before our arrival, others isolated the boilers and allowed the system temperature to fall to an appropriate level. They also isolated the pumps and confirmed that no water flowed through the relevant pipework.
Flow can prevent an ice plug from forming correctly. Therefore, confirming static conditions formed an important part of the preparation. Once on site, our engineers gained access to the Level 3 pipework. We removed the necessary ceiling tiles and sections of insulation to expose the steel pipes. This preparation gave our team suitable access for the specialist freeze jackets.
How did Liquid Nitrogen Create Temporary Pipe Isolation?

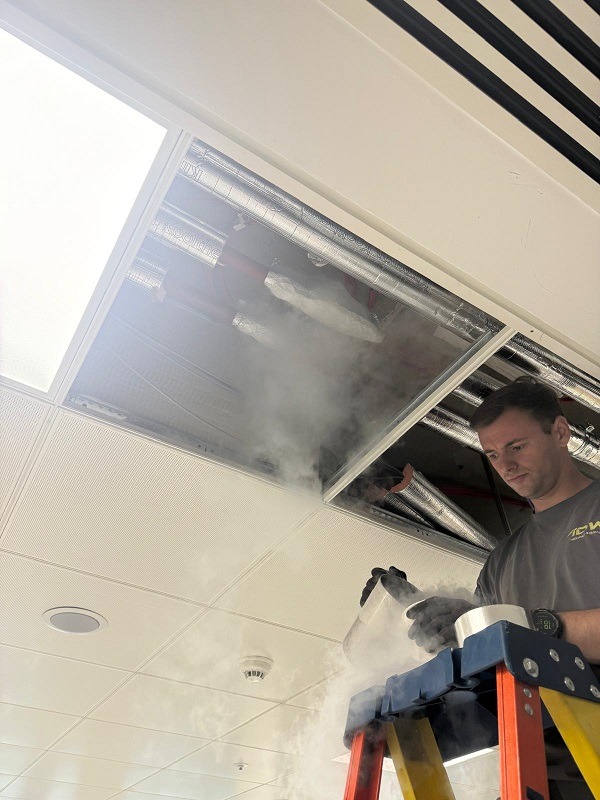

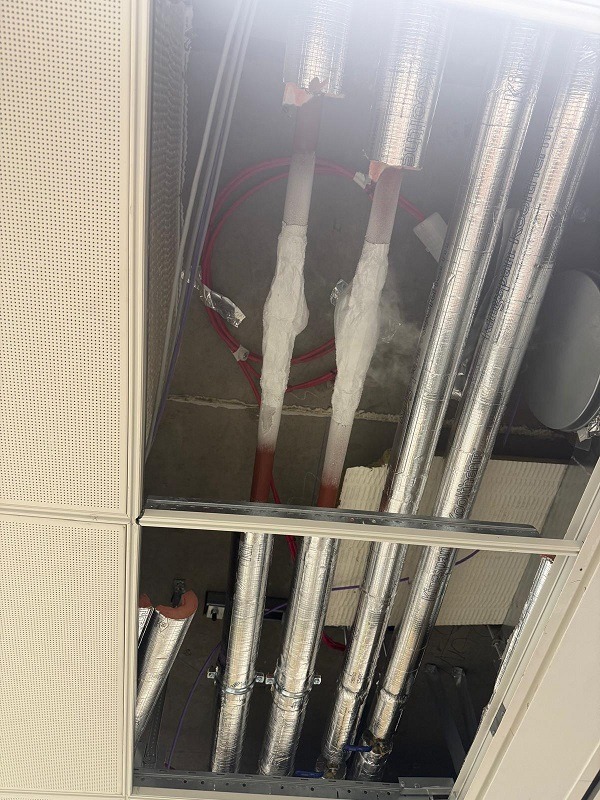

We applied specialist freeze jackets to the selected pipework and introduced liquid nitrogen under controlled conditions. Cryogenic pipe freezing lowers the temperature of the water inside the pipe. As the water freezes, it forms a solid ice plug that provides temporary local isolation. For this project, our team completed two pipe freezes across the relevant FCU heating and chilled water services.
The controlled pipe freeze provided the temporary isolation needed for the valve installation to proceed. Importantly, our scope covered the specialist freezing operation. Others completed the valve installation. Our engineers remained responsible for managing the freezes and safely completing our element of the project.
What Changed After the Pipe Freezing Works?
Before our engineers attended, the Level 3 pipework required suitable isolation before the planned valves could be installed. Our pipe freezing method created temporary isolation at the required locations.
This approach gave the project team a practical way to progress the planned valve works. After others installed the valves, our engineers allowed both freezes to thaw naturally. We then checked the affected areas for leaks and reinstated the insulation removed for the freeze jackets.
Finally, the boilers and pumps could return to operation following completion of the works by others. Our team also cleared redundant materials associated with our work and left the area ready for normal use.
Which key Outcomes did the Project Deliver?
The project achieved several clear outcomes:
- Two controlled pipe freezes completed on Level 3.
- Temporary isolation created for the planned valve installation.
- Both LTHW and chilled water FCU services formed part of the works.
- Valve installation completed by others following successful isolation.
- Pipework checked following thawing.
- Removed insulation reinstated after completion.
This focused approach helped D & D Technical Construction Ltd progress its planned works within the commercial office building.
When can Pipe Freezing Support Commercial Office Maintenance?
Commercial buildings often contain interconnected heating and chilled water systems serving multiple occupied areas. As a result, Facilities Managers and contractors need practical isolation methods when existing valves cannot provide suitable local isolation.
Liquid nitrogen pipe freezing can provide temporary isolation without physically cutting into the pipe to create the initial isolation point. It can prove particularly useful for valve changes, alterations, repairs and planned building-services upgrades.
However, every project requires an individual technical assessment. Pipe material, diameter, temperature, water movement and site conditions can all affect the proposed pipe freezing methods.
Related Commercial Pipework Projects
For another City of London project, discover how our engineers created temporary pipe isolation for FCU alterations at 60 London Wall – read our case study.
You can also explore how our team used live pipe connections to support heating and chilled water modifications at Time & Life Building, London – learn more about this project.
Frequently Asked Questions Liquid Nitrogen Pipe Isolation
Can Pipe Freezing Support Valve Installation?
Yes, subject to site conditions. A pipework freeze can create temporary local isolation while contractors complete planned valve works.
What Happens During Liquid Nitrogen Pipe Freezing?
Engineers apply specialist equipment around the pipe and use liquid nitrogen to reduce the temperature. The water inside freezes and creates a solid ice plug for temporary isolation.
Which Pipework Systems Can Engineers Freeze?
Both LTHW and chilled water systems may suit pipefreezing when temperatures, pipe materials and site conditions allow it. Engineers must assess each application before starting work.
Does Water Flow Affect Ice Plug Formation?
Yes. Moving water introduces heat and can prevent a reliable ice plug from forming. Therefore, pumps and other sources of flow require suitable control.
Where Does IDWe Provide Pipe Freezing Services?
IDWe provides specialist cryogenic freezing services across London and the wider South East. Our coverage includes Kent, Surrey, Sussex, Essex and Hampshire.
Is Cryogenic Pipe Freezing Suitable for Commercial Offices?
It can provide an effective solution for many commercial building-services projects. Typical applications include valve works, maintenance, alterations and local pipework isolation.
What Information Should Facilities Managers Provide Before a Pipe Freeze?
Useful information includes pipe size, material, system type, temperature, location and the proposed works. Our team can then assess whether pipework freezing offers a suitable approach.
Do You Need a Pipe Freezing Company in London?
IDWe provides specialist Pipe Freezing Services for commercial, industrial and public-sector buildings.
With more than 35 years of engineering experience, our expert team supports Facilities Managers, Building Managers and M&E Contractors.
We work across London, Kent, Surrey, Hampshire, Essex, East Sussex, West Sussex and beyond.
Our experienced engineers assess each project before recommending an appropriate pipework isolation solution.
From planned valve works to complex building-services alterations, we focus on high-quality work and controlled project delivery.
As one of London’s established pipe freezing contractors, we understand the demands of working within operational commercial buildings.
