As a leading pipe freezing company, we specialise in efficient and non-invasive pipework modifications. Utilising advanced liquid nitrogen pipe freezing techniques, we isolate pipelines. Enabling valve installations, repairs, and other essential modifications without the need for system drain-downs. This approach ensures minimal disruption to the buildings operations, saving both time and resources. Please read how installed a quarter turn valve with our pipefreezing services in Hertfordshie:
New Valves Installed
Client – SEE Services
Site Location – Tesco Extra, Baldock Building, Stevenage
Contract Duration – Weekend works, out of hours, half day
The Client’s Brief
The client was not able to drain down the system to carry out pipework modifications. Therefore, our Pipe Freezing Services were requested to stop the flow and install two quarter turn valves. Following on from this, remove unrequired pipework.
Key Highlights of Pipework Modifications Included
- For the works to take place, the client was asked to isolate the boiler and pump 12 hours prior to our attendance. This meant the pipework would be at an ambient temperature for the pipework freezes to take place.

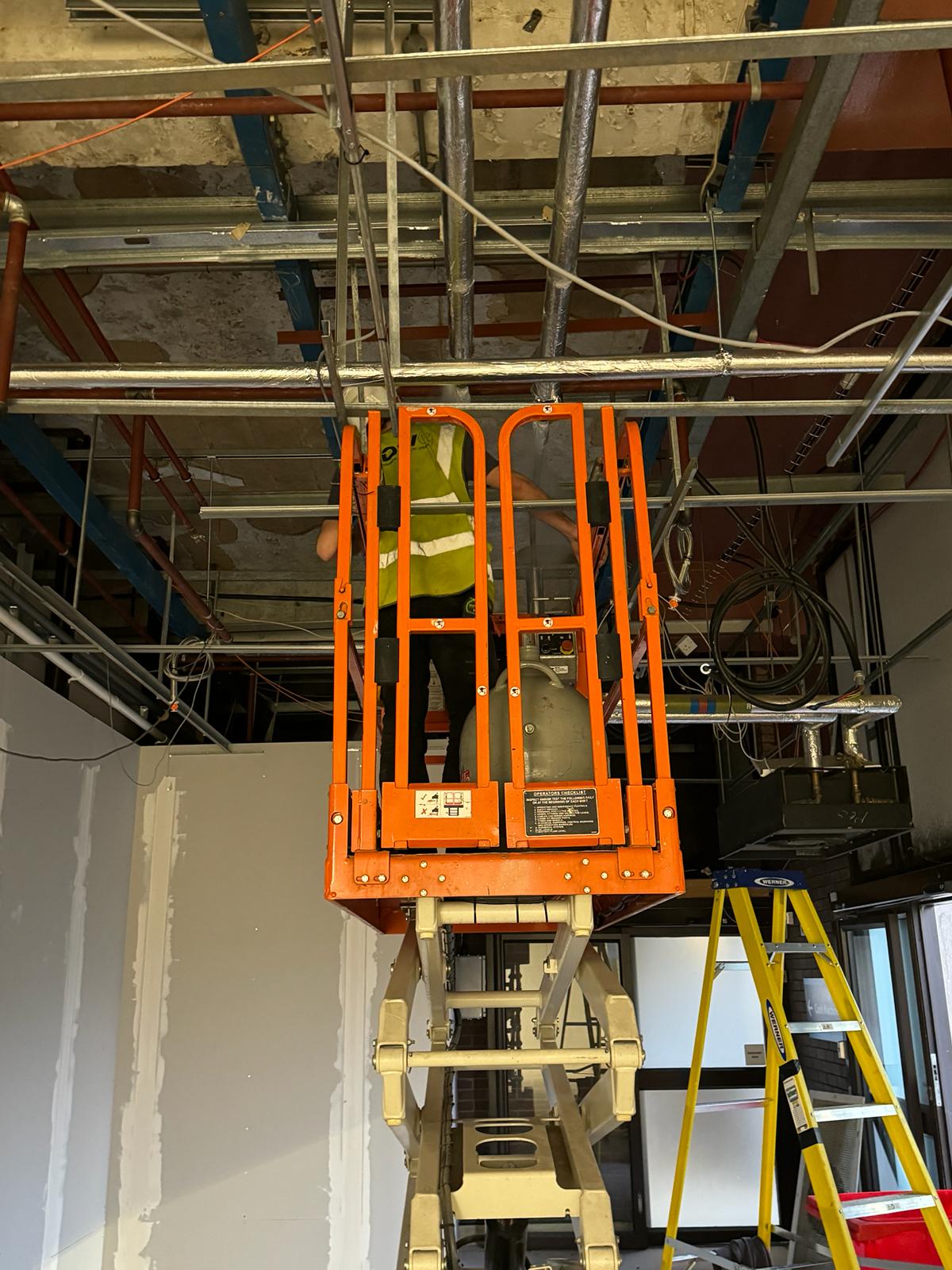

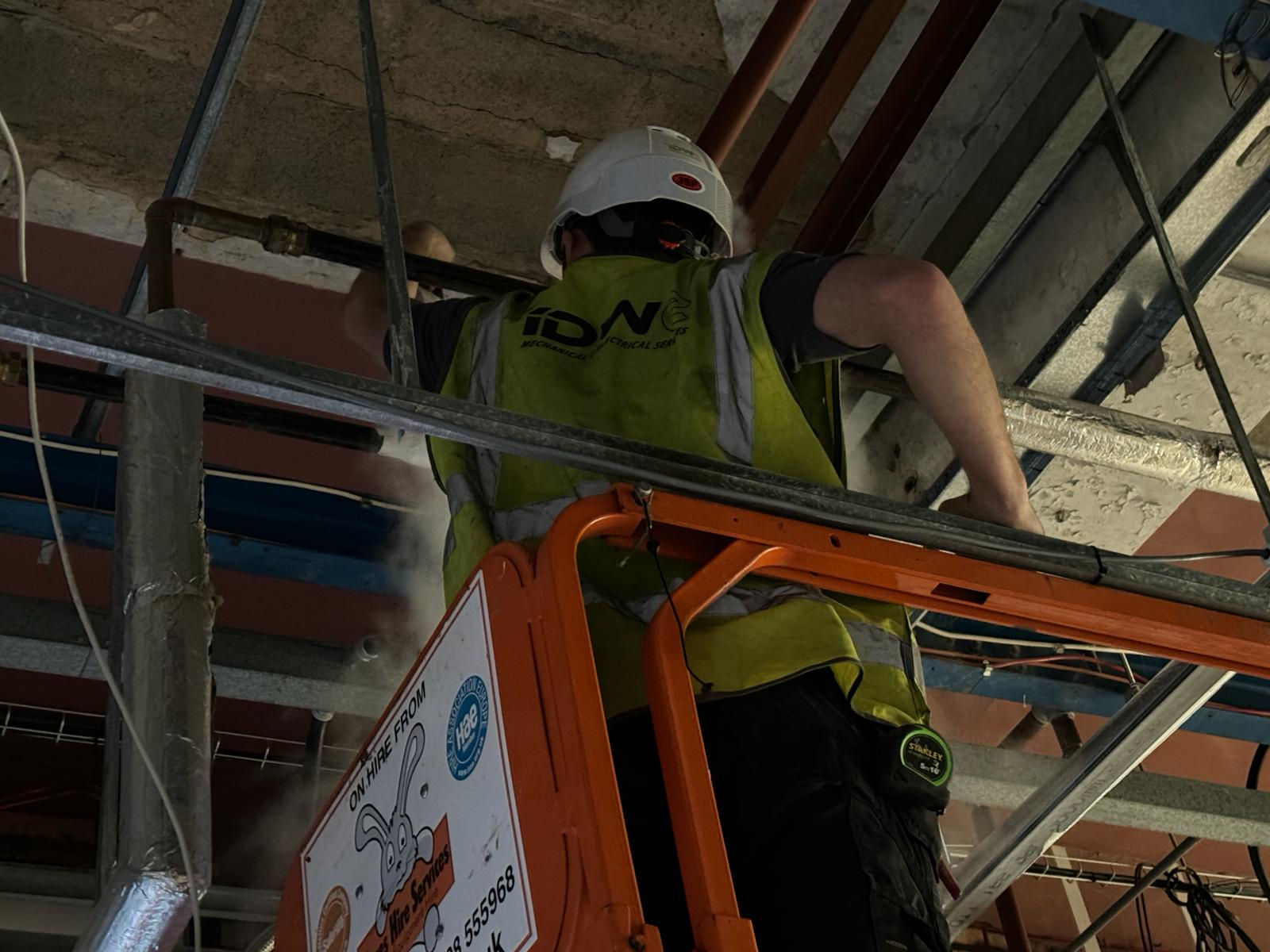

- Our engineers firstly applied a freeze jacket to the 32mm LTHW return pipework and another to the 32mm LTHW flow pipework.

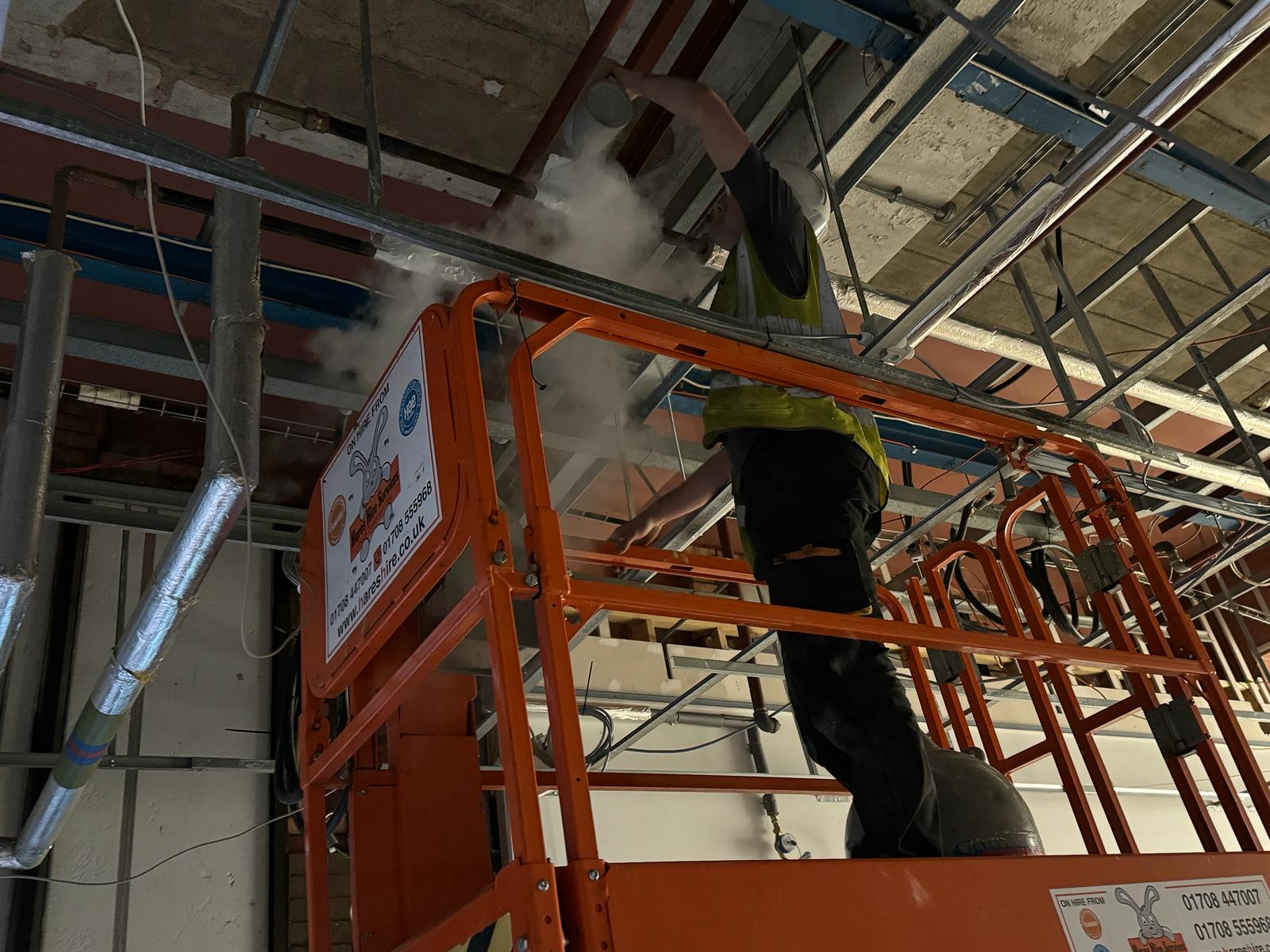

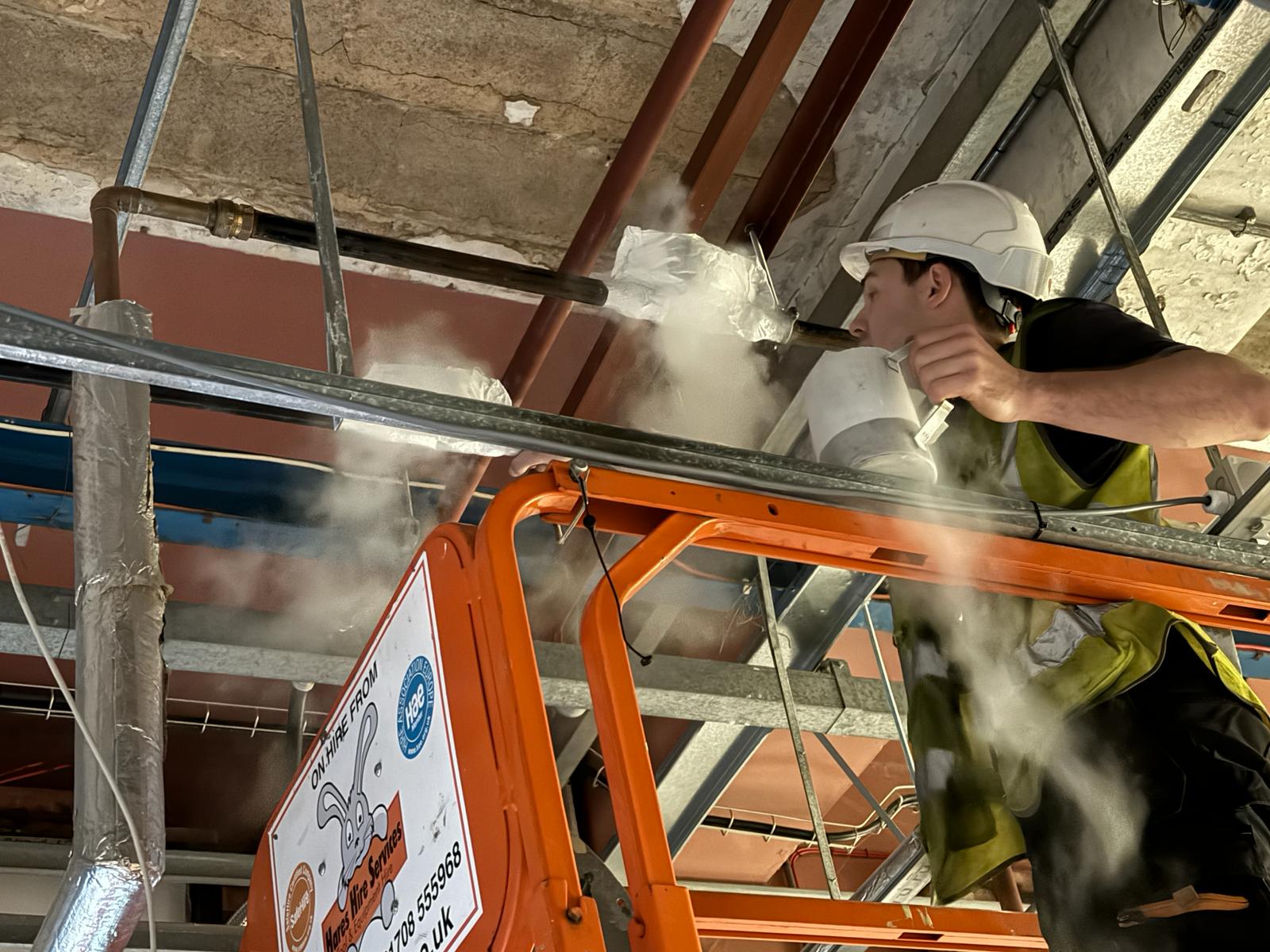

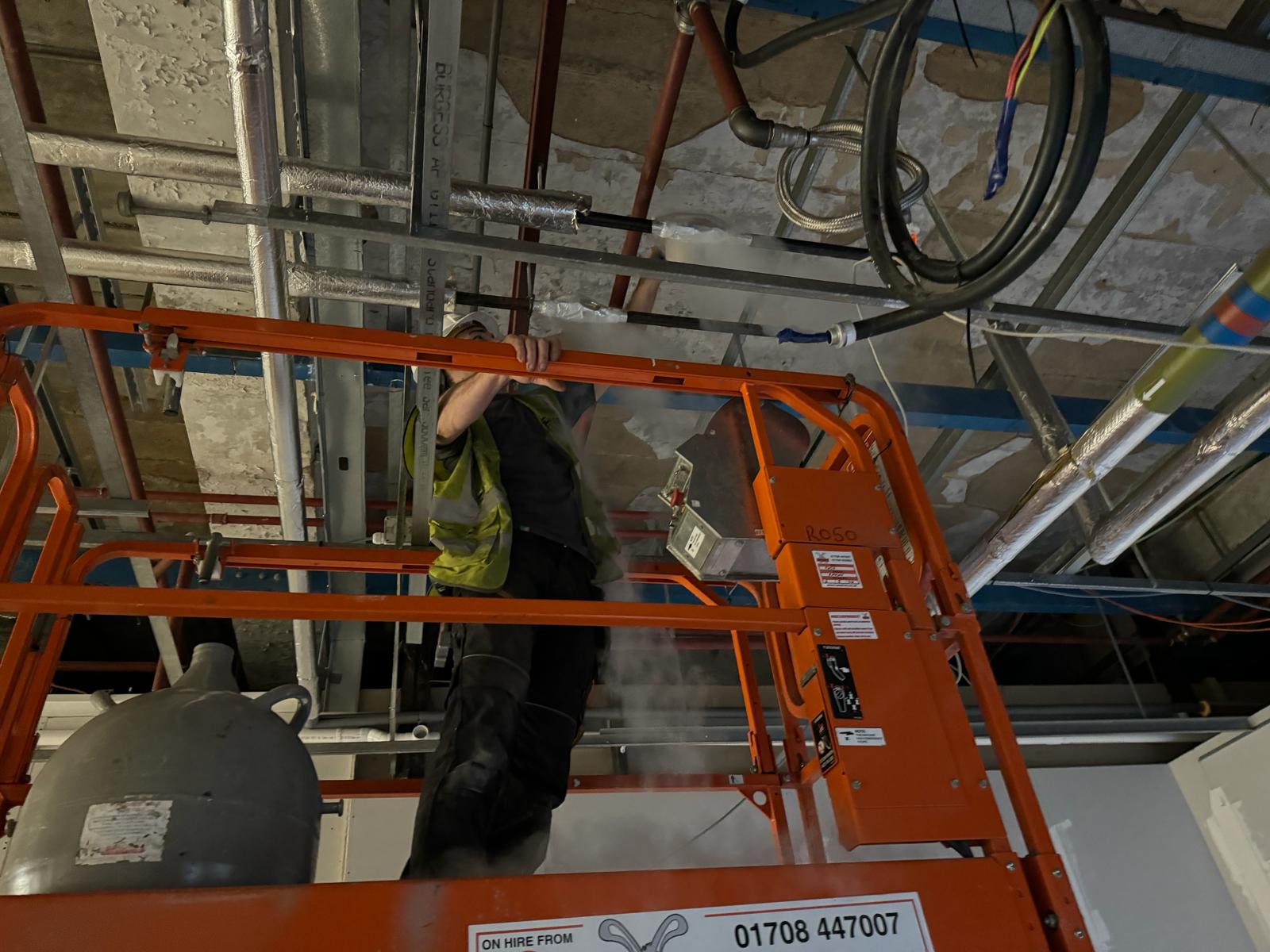

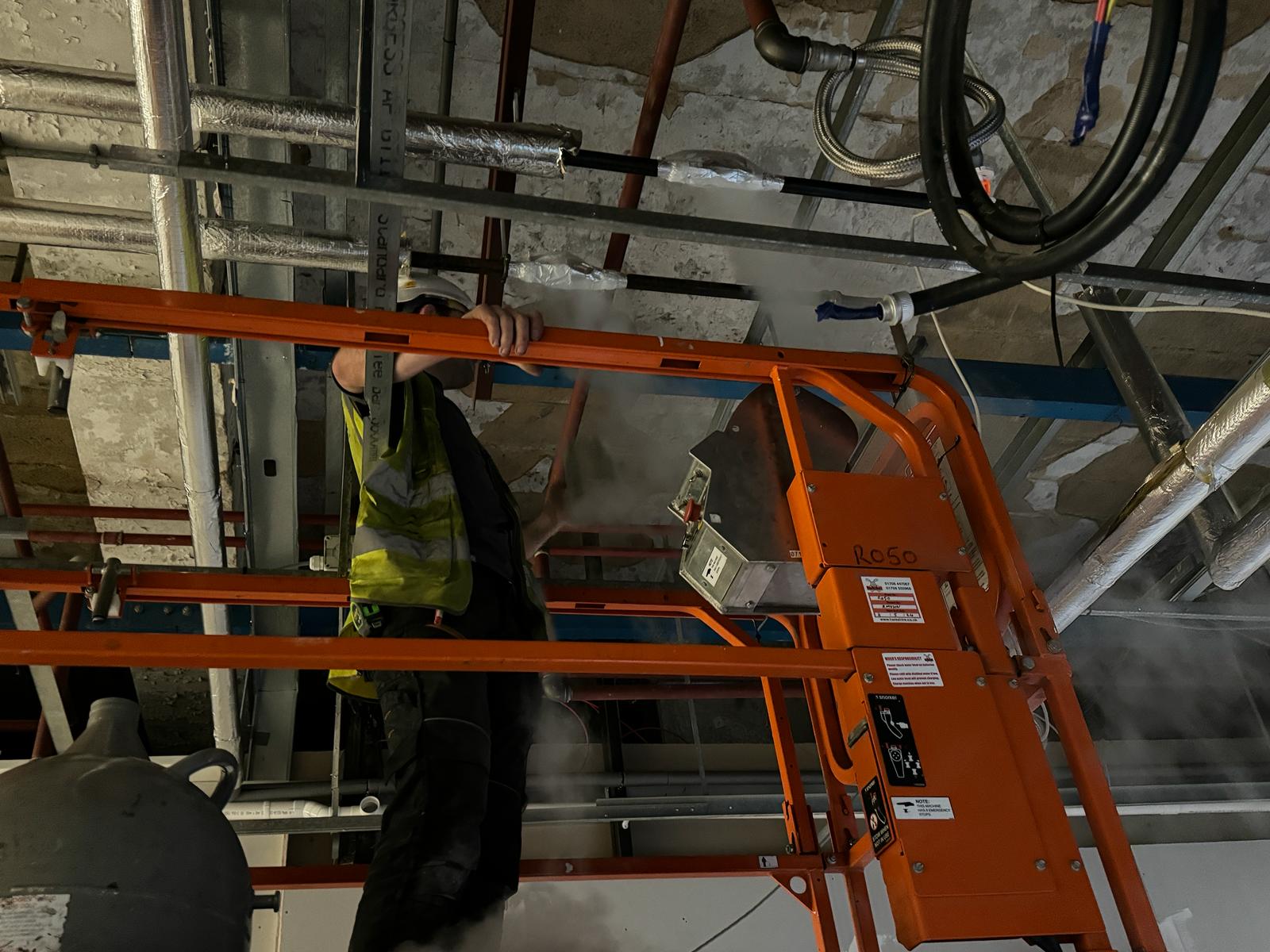

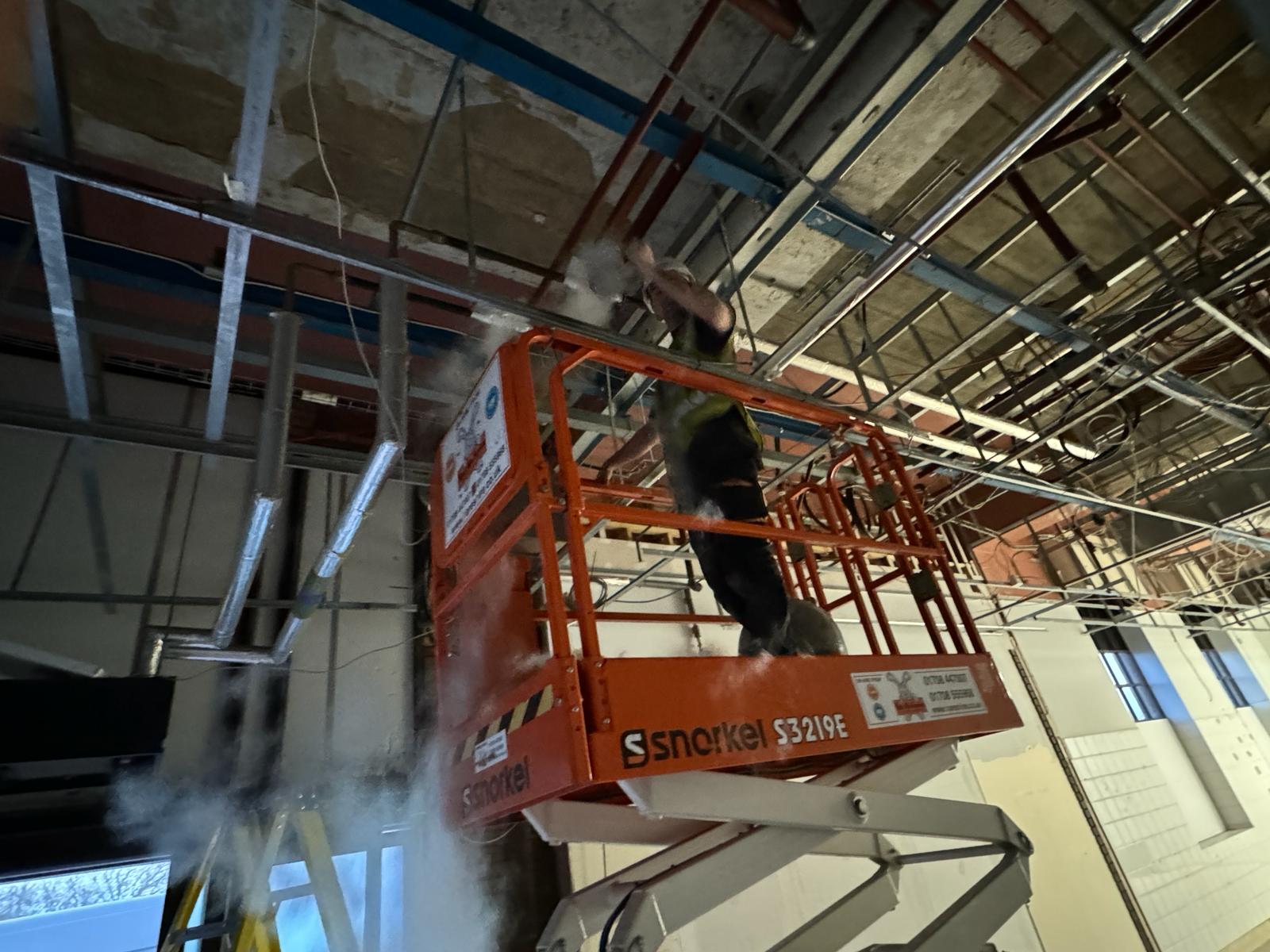

- Then poured liquid nitrogen into the freeze jackets and waited for both jackets to freeze over and form an ice plug.

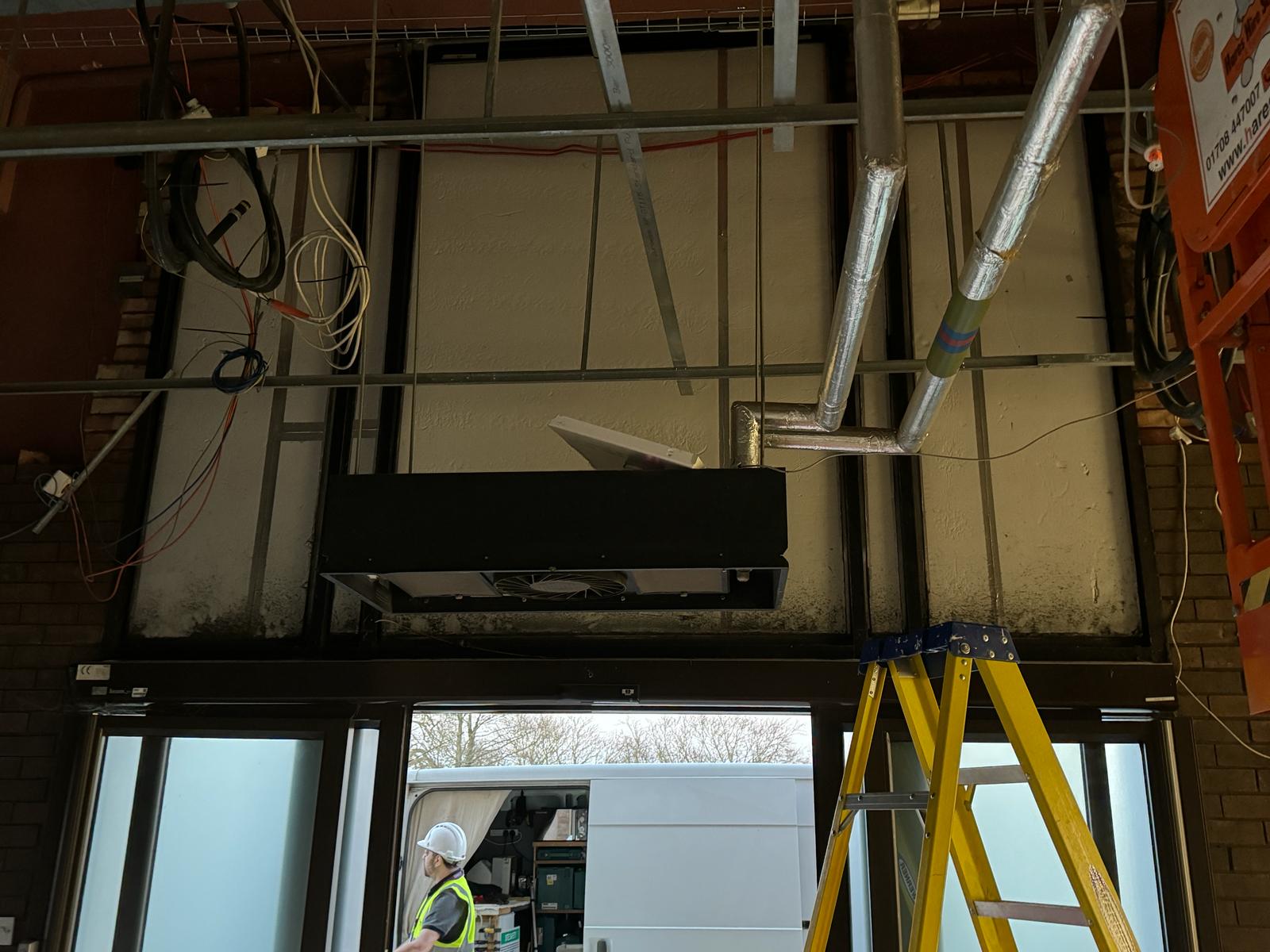

- Once both pipe freezes had taken hold, we cut out the section of the pipework feeding to the over door heater and drained residual water into local foul drains. Next, on the end of both cut off pipes, we installed one quarter turn valve, along with a plug off outlet.
- Lastly, we safely released the freezes and checked for leaks.
Result of Works
There was minimal disruption to services at Tesco Extra and they now have two new quarter turn valves ready to use.
Benefits of Pipe Freezing
Would you like to understand pipe freezing in more detail? Read our Guide to Pipe Freezing
Our Commitment
With over 30 years of experience, we are dedicated to delivering top-quality Pipe Freezing Services across London, Kent, Surrey, Hampshire, Essex, East Sussex, West Sussex and beyond. Our skilled team ensures precise execution, adhering to strict safety protocols to maintain system integrity.
